What is Power Factor in AC Circuits?
Power Factor (PF) is the ratio of active power (kW) to apparent power (kVA) in an alternating current (AC) circuit. Power factor measures how efficiently electrical power converts into useful work output. A power factor of 1 (unity) means all supplied power performs real work, while a low power factor means a portion of the supplied power circulates as reactive power (kVAR) without doing useful work.
Power factor applies to every AC electrical system — from industrial plants running induction motors to residential homes with air conditioning units. Understanding power factor helps engineers reduce energy losses, avoid utility penalties, and improve power quality across the distribution network. Use a Watts to Volts calculator to convert between power and voltage in AC and DC circuits, where power factor plays a direct role in AC calculations.
This article covers the power factor definition, the power factor formula, leading vs lagging power factor, the power triangle, power factor correction (PFC) methods, and real-world calculation examples.
Power Factor Definition and Formula
Power factor is cosine of the phase angle (cos φ) between voltage and current waveforms in an AC circuit. The phase angle φ represents the time shift between the voltage waveform and the current waveform.
The power factor formula is:
PF = P / S = kW / kVA = cos φ
Where:
- P = Active Power (also called Real Power), measured in kilowatts (kW)
- S = Apparent Power, measured in kilovolt-amperes (kVA)
- φ = Phase angle between voltage and current
Power factor values range from 0 to 1. A PF of 0.85 means 85% of the apparent power performs useful work. The remaining 15% circulates as reactive power within the circuit.
The Power Triangle: Active, Reactive, and Apparent Power

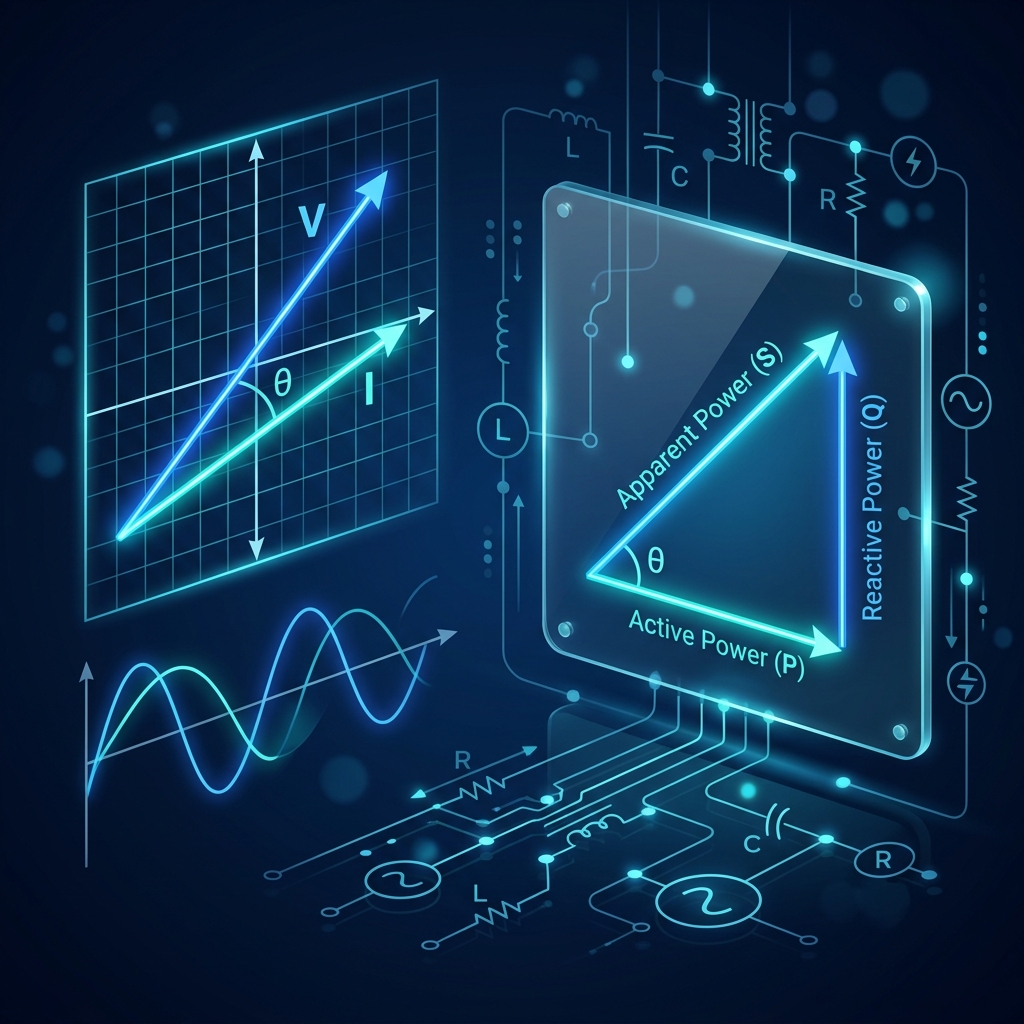

The relationship between active power, reactive power, and apparent power forms a right triangle called the power triangle.
The 3 components of the power triangle are:
- Active Power (P) is the real, usable power measured in kilowatts (kW). Active power performs actual work — turning motors, heating elements, and powering lights.
- Reactive Power (Q) is the power that oscillates between the source and the load, measured in kilovolt-amperes reactive (kVAR). Reactive power sustains magnetic fields in inductive loads like motors and transformers but does no useful work.
- Apparent Power (S) is the total power supplied by the source, measured in kilovolt-amperes (kVA). Apparent power is the vector sum of active and reactive power: S² = P² + Q².
The power factor equals the ratio of the horizontal side (active power) to the hypotenuse (apparent power) in this triangle.
Leading vs Lagging Power Factor
Power factor is categorized as lagging or leading depending on the relationship between the current waveform and the voltage waveform.
Lagging Power Factor
A lagging power factor occurs when current lags behind voltage in an AC circuit. Inductive loads — motors, transformers, solenoids, and fluorescent lighting ballasts — cause lagging power factor. The magnetic field in inductive loads requires reactive power (kVAR) to build and collapse each cycle.
Most industrial and commercial electrical systems operate with a lagging power factor between 0.75 and 0.95 because induction motors are the most common industrial load type.
Leading Power Factor
A leading power factor occurs when current leads voltage in an AC circuit. Capacitive loads — capacitor banks, synchronous condensers, and certain electronic power supplies — produce a leading power factor. Overcompensation with capacitor banks during light-load conditions can push a system into leading power factor territory.
| Feature | Lagging PF | Leading PF |
|---|---|---|
| Current vs Voltage | Current lags voltage | Current leads voltage |
| Cause | Inductive loads (motors, transformers) | Capacitive loads (capacitor banks) |
| Reactive Power | System absorbs kVAR | System generates kVAR |
| Common In | Industrial plants, HVAC systems | Lightly loaded cable networks, overcompensated systems |
How to Calculate Power Factor — Example
To calculate power factor in an AC circuit, use the formula PF = P / S.
Example: A single-phase AC motor draws 5 kVA of apparent power and consumes 4 kW of active power. The power factor calculation is:
PF = P / S = 4 kW / 5 kVA = 0.80 lagging
The reactive power in this circuit is:
Q = √(S² − P²) = √(25 − 16) = √9 = 3 kVAR
The phase angle is:
φ = cos⁻¹(0.80) = 36.87°
This means the current waveform lags the voltage waveform by 36.87 degrees.
Why Power Factor Matters
A low power factor creates 4 measurable problems in an electrical system:
- Higher energy bills — Utility companies impose power factor penalties (surcharges) when PF drops below 0.85 or 0.90. Industrial consumers with a PF of 0.70 pay 20–30% more for electricity than those at 0.95.
- Increased current draw — For the same active power, a lower power factor requires more current. A 100 kW load at PF = 0.70 draws 142.8 A, while the same load at PF = 0.95 draws 105.3 A (at 1000 V). Higher current increases cable losses (I²R losses).
- Overloaded equipment — Transformers, switchgear, and distribution cables are rated in kVA. Low power factor forces these components to carry more current than necessary, reducing capacity for real work.
- Voltage drops — Excessive reactive current flowing through distribution lines causes voltage drops that affect power quality for all connected loads.
Power Factor Correction (PFC) Methods
Power factor correction (PFC) raises the power factor closer to unity (1.0). There are 3 main power factor correction methods:
1. Capacitor Banks
Capacitor banks are the most common PFC method in industrial electrical systems. Capacitors supply leading reactive power (kVAR) that cancels the lagging reactive power drawn by inductive loads.
Capacitor bank sizing formula:
Q_c = P × (tan φ₁ − tan φ₂)
Where:
- Q_c = Required capacitor kVAR
- P = Active power (kW)
- φ₁ = Phase angle at the existing power factor
- φ₂ = Phase angle at the target power factor
Example: A 200 kW load operates at PF = 0.75 (φ₁ = 41.41°). The target PF is 0.95 (φ₂ = 18.19°).
Q_c = 200 × (tan 41.41° − tan 18.19°) = 200 × (0.8819 − 0.3287) = 110.6 kVAR
Major manufacturers including ABB, Schneider Electric, and Siemens produce automatic power factor correction (APFC) panels that switch capacitor banks in and out based on real-time load conditions.
2. Synchronous Condensers
Synchronous condensers are synchronous motors running without a mechanical load. By adjusting the field excitation, synchronous condensers produce or absorb reactive power as needed. Large industrial facilities and utility substations use synchronous condensers for continuous power factor regulation.
3. Variable Frequency Drives (VFD)
Variable Frequency Drives (VFD) improve power factor by controlling motor speed and reducing reactive power demand. VFDs convert AC power to DC, then back to AC at the required frequency — maintaining near-unity power factor at the input side. Modern VFDs from manufacturers like ABB and Siemens achieve input displacement power factor above 0.95.
Power Factor in LCR Circuits
In an LCR (inductor-capacitor-resistor) series circuit, the power factor depends on the combined impedance of all 3 components.
The impedance formula for an LCR series circuit:
Z = √(R² + (X_L − X_C)²)
Where:
- R = Resistance in ohms (Ω)
- X_L = Inductive reactance = 2πfL (ohms)
- X_C = Capacitive reactance = 1/(2πfC) (ohms)
The power factor formula for an LCR circuit:
PF = cos φ = R / Z
Three conditions determine the circuit behavior:
- X_L > X_C → The circuit is inductive → Lagging power factor
- X_C > X_L → The circuit is capacitive → Leading power factor
- X_L = X_C → The circuit is at resonance → Unity power factor (PF = 1)
At resonance, the inductive reactance equals the capacitive reactance, impedance drops to pure resistance (Z = R), and the circuit draws minimum current for maximum power transfer.
Displacement Power Factor vs Distortion Power Factor
Modern electrical systems with nonlinear loads — LED drivers, Variable Frequency Drives (VFD), Uninterruptible Power Supplies (UPS), and switch-mode power supplies — create harmonic currents that distort the current waveform. This introduces two types of power factor:
- Displacement Power Factor (DPF) measures the phase angle between the fundamental (50 Hz or 60 Hz) voltage and current waveforms. DPF equals cos φ at the fundamental frequency only.
- Distortion Power Factor accounts for the effect of harmonic currents on total power delivery. Distortion power factor equals 1/√(1 + THD²), where THD is Total Harmonic Distortion (THD) of the current waveform.
The True Power Factor combines both:
True PF = DPF × Distortion PF
IEEE Standard 1459 defines measurement methods for true power factor in systems with harmonic distortion. IEEE Standard 519 sets limits for harmonic current injection into utility systems. Measurement tools like Fluke power quality analyzers and Schneider Electric PowerLogic meters measure both displacement and distortion power factor in real-time.
How to Measure Power Factor
Power factor measurement requires 3 approaches based on the application:
- Power Factor Meter — A dedicated analog or digital instrument that directly displays cos φ. Industrial switchboards include panel-mounted power factor meters for continuous monitoring.
- Power Quality Analyzer — Instruments from Fluke and other manufacturers measure power factor along with Total Harmonic Distortion (THD), voltage, current, and harmonic spectra. An energy audit typically uses a power quality analyzer for 7-day load profiling.
- Smart Grid Meters — Modern smart grid infrastructure includes advanced metering that records power factor data at 15-minute intervals. Utility companies use this data for reactive energy billing and demand charge calculations.
Power Factor Correction: Before and After
| Parameter | Before PFC (PF = 0.70) | After PFC (PF = 0.95) | Improvement |
|---|---|---|---|
| Active Power | 100 kW | 100 kW | Same |
| Apparent Power | 142.8 kVA | 105.3 kVA | 26.3% reduction |
| Reactive Power | 102.0 kVAR | 32.9 kVAR | 67.7% reduction |
| Line Current (at 415 V 3φ) | 198.7 A | 146.5 A | 26.3% reduction |
| I²R Cable Losses | Base | 54.3% of base | 45.7% reduction |
| Utility Penalty | 20–30% surcharge | No surcharge | Full savings |
Significance of Power Factor in AC Circuits
Power factor directly affects 5 areas of an AC electrical system:
- Energy efficiency — Higher power factor reduces current flow for the same active power output, cutting I²R losses in cables, transformers, and distribution equipment.
- Equipment capacity — Transformers and generators rated in kVA deliver more usable kW when the connected load has a high power factor. A 500 kVA transformer at PF = 0.95 delivers 475 kW of usable power. The same transformer at PF = 0.70 delivers only 350 kW.
- Voltage regulation — Low power factor causes voltage drops across distribution feeders. Power factor correction with capacitor banks improves voltage regulation and reduces flicker.
- Grid stability — Utility companies require industrial consumers to maintain minimum power factor levels (typically 0.90 or above). Reactive power compensation with capacitor banks and synchronous condensers supports overall grid stability.
- Cost savings — Energy audits at industrial facilities consistently show 10–20% electricity cost reductions after power factor correction from 0.75 to 0.95.
Power factor is a core parameter in every AC circuit analysis. From selecting the right conversion formula to sizing capacitor banks for PFC panels, understanding power factor separates efficient electrical design from wasteful energy consumption. Maintain power factor at 0.95 or above in industrial systems to minimize losses, avoid utility demand charges, and extend the life of electrical distribution equipment.
